Total Pipe Length
Instantly totals the length of selected pipes, ducts, conduits, cable trays and lines in Revit
Back up your project before running any plugin, and always review the results before relying on them. See the EULA
General usage instructions
Total Pipe Length answers a question every MEP modeler asks constantly: “how much of this is there?” Select any run of linear elements in Revit and get their combined length in one click — no schedule to build, no formula to write, no temporary view to set up.

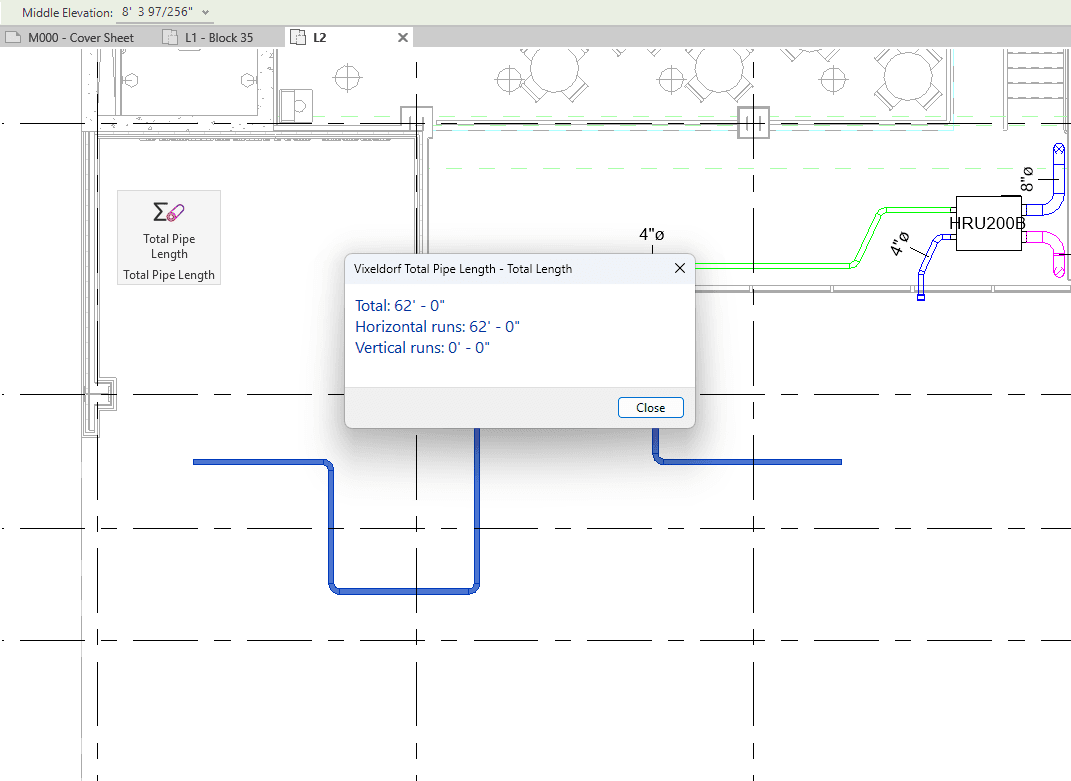

How it works: select the elements you want to measure and click Total Pipe Length on the Vixeldorf ribbon tab. A dialog shows the combined length immediately. If nothing is selected when you click, the add-in drops you straight into a pick session (it only lets you pick measurable, linear elements) — draw a selection, click Finish, and the total appears. Press Esc to cancel at any time. When your selection spans more than one category — say pipes and cable trays together — the result is broken down per category (longest first) with a grand total underneath.
It is built for MEP modelers, coordinators, and estimators who need a fast, throwaway quantity — checking a run before ordering, sanity-checking a schedule, or answering “how many meters of conduit is on this level?” without touching the model.
Key features
- Measures every curve-based element type: pipes, ducts, conduits, cable trays, flexible pipe/duct, and model or detail lines.
- Two ways to work: measure what’s already selected, or click with an empty selection to pick elements on the fly with a filter that only allows linear elements.
- Per-category breakdown when several categories are selected, plus a combined total — no mixing of disciplines into one meaningless number.
- Results in your project’s own length unit, with the unit symbol always shown (mm, m, or feet-and-inches — whatever the project uses), rounded to the project’s own accuracy setting.
- Completely read-only: it never starts a transaction, never adds parameters, and never changes or stores anything in the model. Safe to run on live, workshared central models.
How to use it

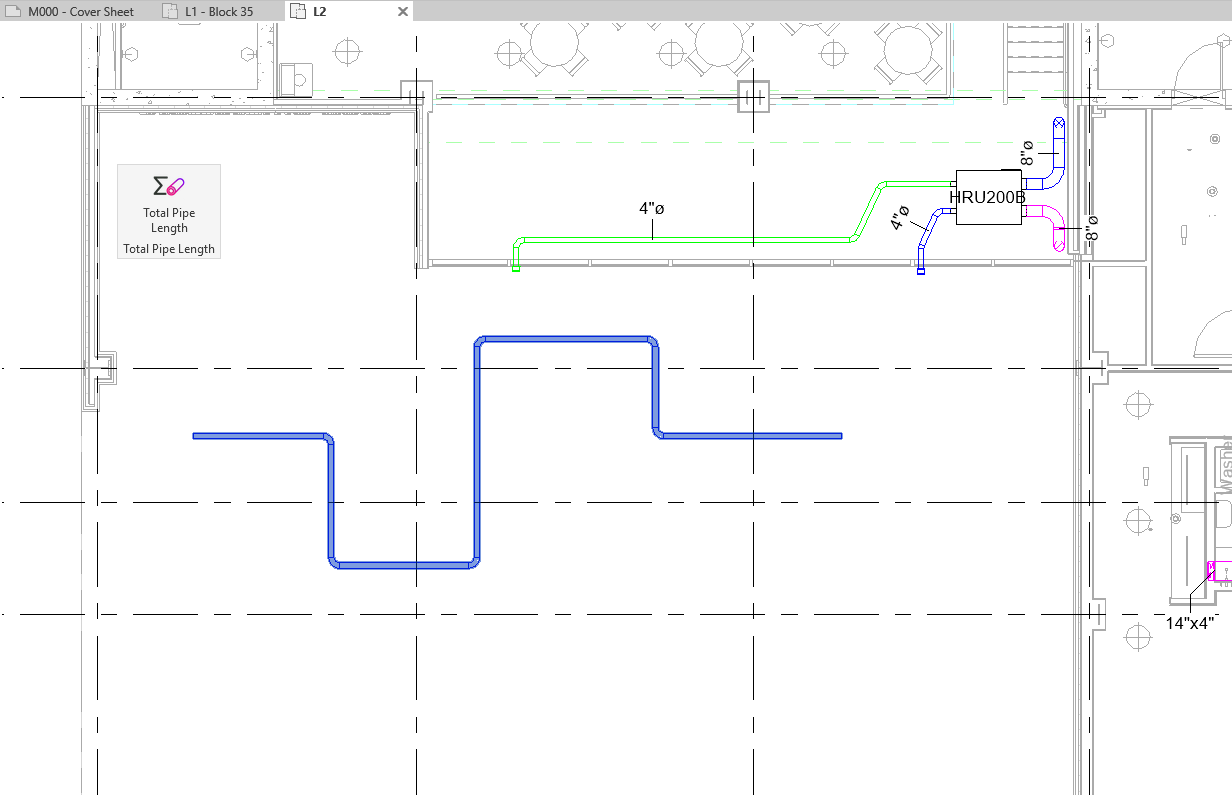

- 1(Optional) Select the linear elements you want to measure — pipes, ducts, conduits, cable trays, or lines. You can mix categories.
- 2Click Total Pipe Length on the Vixeldorf ribbon tab.
- 3If you had a selection, the result dialog appears immediately. If nothing was selected, Revit enters a pick session that only allows linear elements — select them in the view and click Finish (or press Esc to cancel).

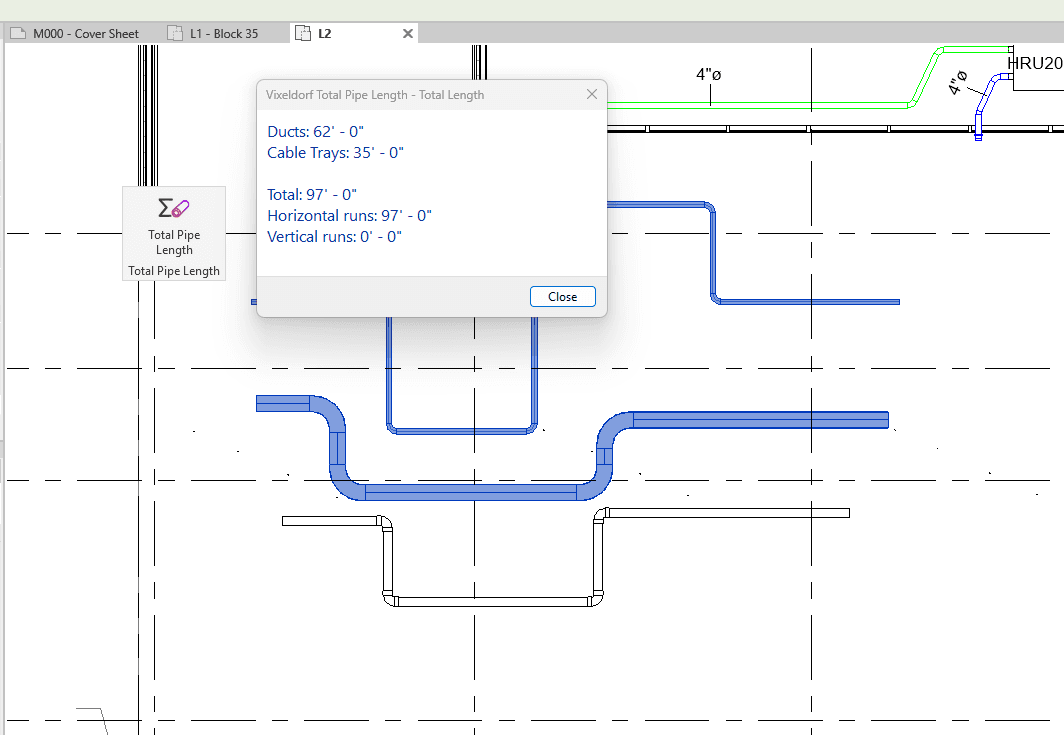

- 4Read the total in the dialog. When more than one category is selected, each category’s length is listed separately (longest first) with a combined total underneath.
- 5Lengths are shown in your project’s current length unit and accuracy; change the project units (Manage → Project Units) to see the total in a different unit.
