ShaftMaster
Model vertical HVAC shafts in Revit as per-level segments — draw a profile, set the airflow, and read area, velocity and pressure drop instantly, all in your project’s own units
Back up your project before running any plugin, and always review the results before relying on them. See the EULA
General usage instructions
ShaftMaster turns the tedious job of modelling vertical HVAC shafts into a single, guided workflow. Draw a closed profile once and ShaftMaster extrudes it through every level of the building as a stack of per-level segments that stay one single, editable shaft.
How it works: pick Create Shaft, draw the profile with model lines (or the Rectangle tool, or reuse existing lines / a filled region) and press Esc. A level table appears listing every level in the project. Tick the levels the shaft passes through, type the airflow for each segment, and ShaftMaster instantly computes cross-section area, cumulative airflow, air velocity and an estimated pressure drop — every value shown in the units your Revit project is configured with (metric or imperial). Click OK and the shaft is placed.
It is built for HVAC / MEP engineers and BIM modellers who lay out ventilation shafts across multi-storey buildings and want them consistent, parametric and schedulable — without modelling each floor by hand.
Key features
- Draw an arbitrary closed profile — model lines, the Rectangle tool, picked lines, or a filled-region boundary.
- One shaft, many segments — each level gets its own segment; segments can inherit the profile below them or carry their own shape.
- Per-segment control — bottom/top offsets, “align to lower” positioning, and per-segment airflow, with cumulative (main) airflow rolled up automatically.
- Live engineering values — cross-section area, air velocity and a quick pressure-drop estimate update as you type.
- Project units everywhere — all lengths, areas, airflow, velocity and pressure follow the project’s unit settings; nothing is hard-coded to metric.
- Check Ducts — finds the horizontal ducts that intersect each segment, sums their airflow, and colour-codes each segment green when the duct flow matches the design flow (red when it doesn’t); one click copies the measured flow into the segment.
- Edit any shaft later — reopen it from the floating palette, re-draw a segment’s profile, change airflow or offsets, or rename it.
- Duplicate-ID protection — a Shaft ID that already exists is rejected, so you never silently overwrite another shaft.
- Delete a shaft in one click from the palette, with confirmation.

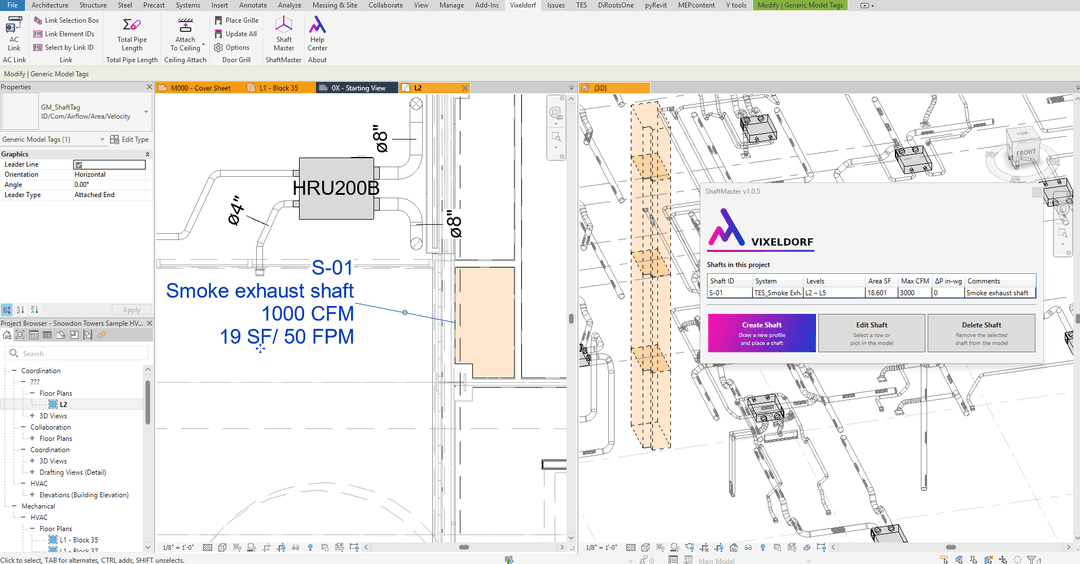

- Floating palette lists every shaft in the project (ID, system, level range, area, max airflow, pressure drop, comments); double-click a row to edit, or pick the shaft in the model.
- Schedule-ready — every shaft carries native shared parameters (Shaft ID, airflow, area, velocity, level) so it drops straight into Revit schedules.
How to use it
- 1On the Vixeldorf ribbon tab, click Shaft Master to open the floating palette.

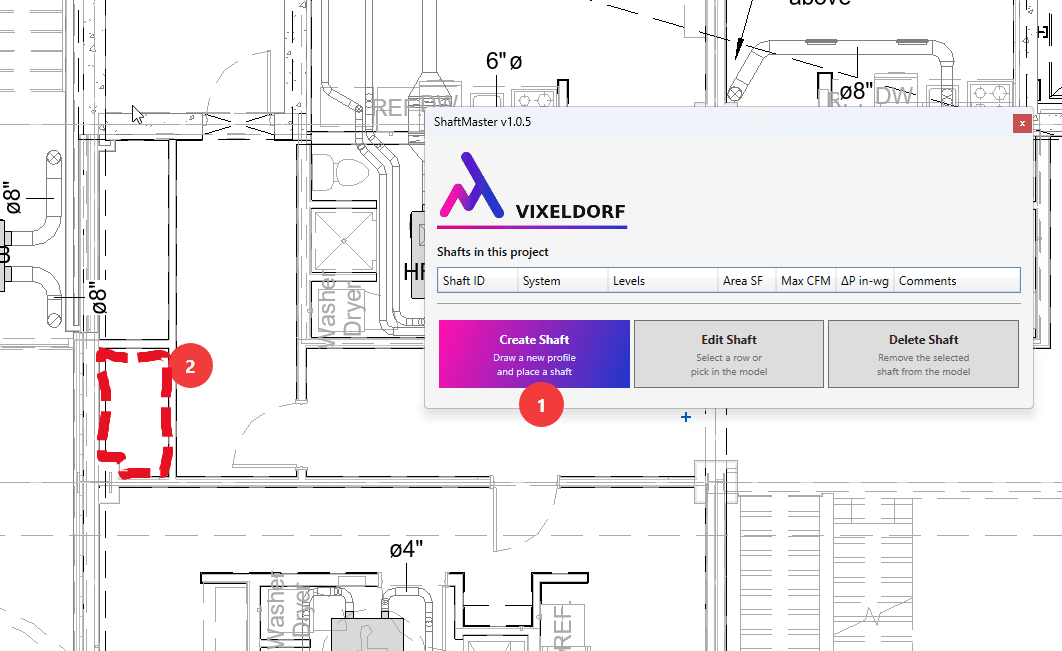

- 2Click Create Shaft and draw a closed profile in a plan view (model lines or the Rectangle tool); press Esc when the loop is closed.

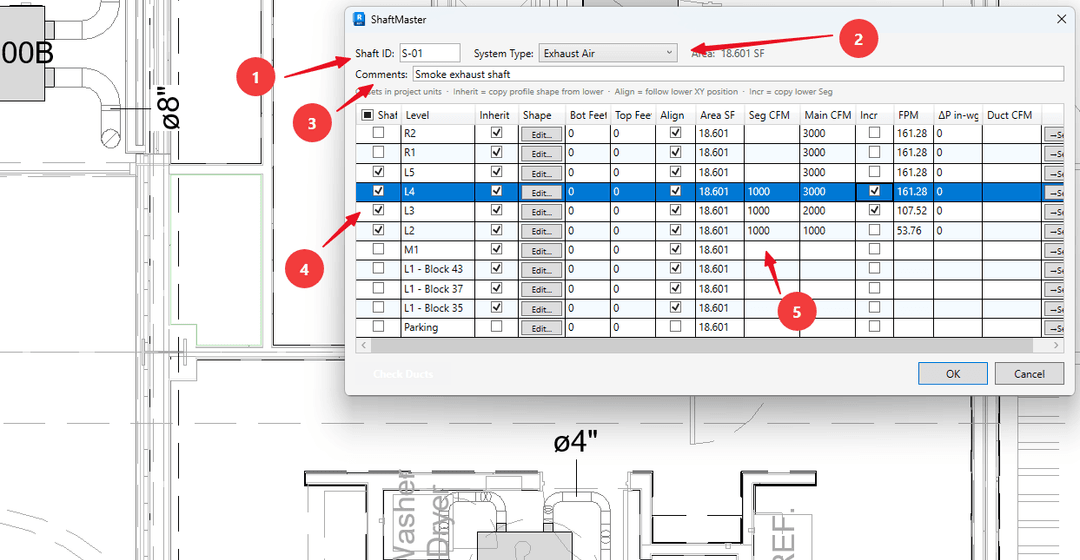

- 3In the level table, tick every level the shaft spans and enter the airflow for each segment. Area, cumulative airflow, velocity and pressure drop update automatically in your project’s units.
- 4Optional — click Check Ducts to match each segment against the horizontal ducts that cross it; green means the duct flow matches the design flow. Use the arrow button to copy a measured flow into a segment.
- 5Give the shaft an ID (and system type / comments if wanted) and click OK to place it.
- 6To revisit a shaft, select its row in the palette (or pick it in the model) and click Edit Shaft; use Delete Shaft to remove it, or the per-row “Edit…” button to re-draw a single segment’s profile.
